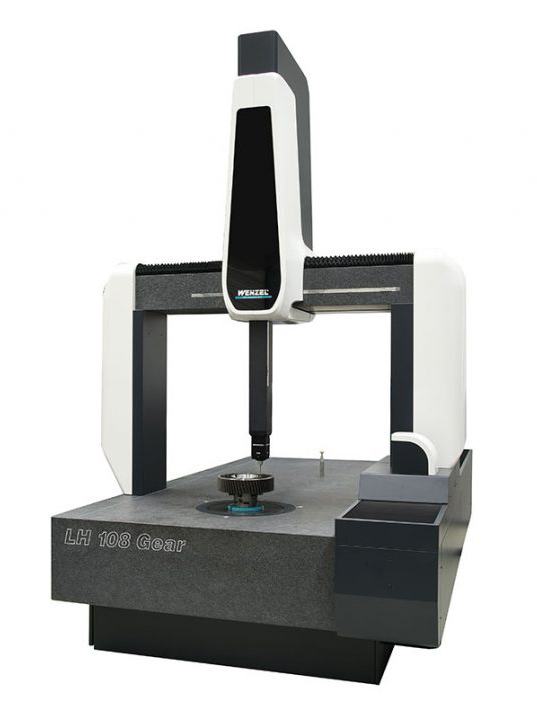

LH With Rotary Table 3D Coordinate Measuring Machines With Rotary Table
ULTIMATE FLEXIBILITY FOR CMM INSPECTION
The LH with Rotary Table Series is a 4-axis machine which combines the measurement principles of metrology and the flexibility of a coordinate measuring machine. Equipped with an integrated rotary table and a WENZEL WMC controller, rotationally symmetrical parts as well as prismatic parts can be measured quickly and precisely with an LH with Rotary Table.
Any of the large range of WENZEL LH bridge CMM structures can be configured as an LH with Rotary Table machine, ensuring that we can provide the right machine for every customer.
The baseplate and guides of the linear axes are made of granite ensuring identical thermal behavior of the complete measuring system. For highest precision, air bearings are used in all axes.

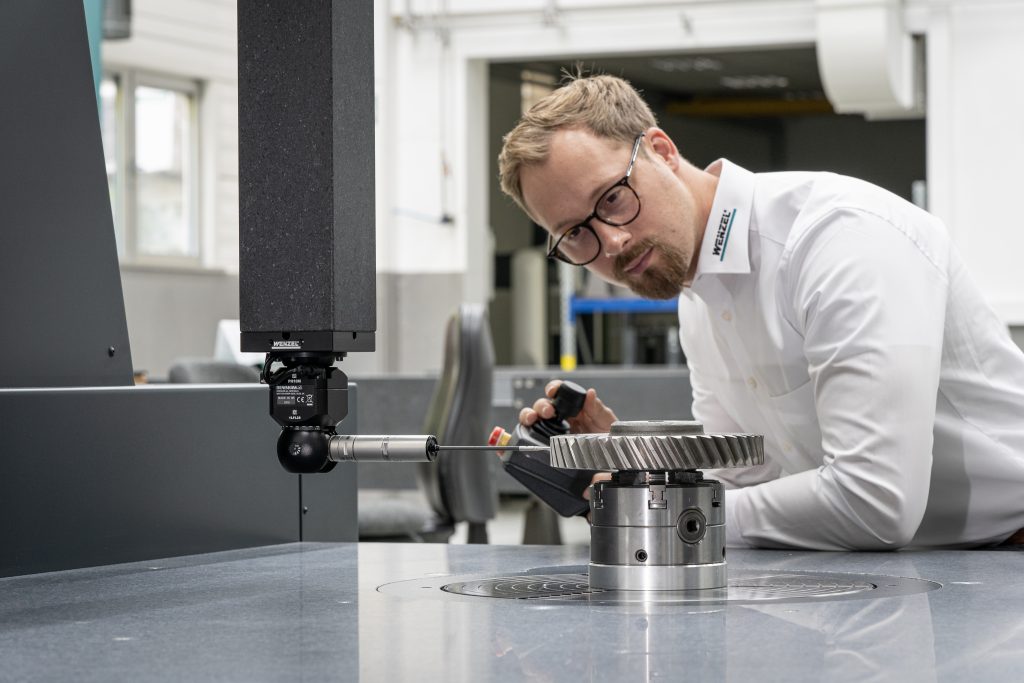

LH with Rotary Table machines are suited to customers who manufacture rotationally symmetrical parts and who also machine prismatic parts like gearbox housings.
BENEFITS
-
Long term, mechanical accuracy
Granite Structure | Hand finished | Inherent mechanical precision
-
Low cost of ownership
Air bearings with small gaps - low air consumption | Renishaw probes - reliable with cheap replacement parts | Longer calibration intervals
-
Speed, because time is money
True 4th axis for highest speed and precision | High scanning speeds | Quick Tool Change
-
Flexibility to get you the solution YOU need
Measure any shaft geometry and rotors | Measure CMM parts | Huge range of sizes and configurations
-
Reliability for maximum uptime
Superbly engineered and built | WMC controller - the most reliable | Industry standard Renishaw probe systems
