RENISHAW REVO® ULTRAFAST 5-AXIS SCANNING
ULTIMATE SPEED AND ACCESSIBILITY
A REVO® system delivers the ultimate performance contact scanning and surface finish analysis on a single CMM.
REVO® uses synchronized motion and 5-axis measurement technology to minimize the dynamic effects of CMM motion at ultra-high measurement speeds. The use of a flexible tip-sensing probe system further adds to the system's accuracy and flexibility. REVO’s infinite positioning capability guarantees optimal feature access, minimizing stylus changes.
High speed 5-axis scanning can be performed with styli up to 500mm in length and 3-axis scanning with styli up to 800mm in length.
BENEFITS
-
Speed – fastest contact scanning available
Up to 500mm/s scanning speed | Short calibration times | Short probe set-up times
-
Powerful for the most challenging applications

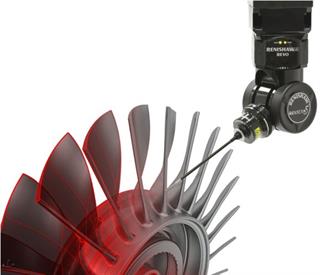

Aero engine blisks | Engine blocks and heads | Infinite positioning
-
Accessibility
Maximum depth with thin styli | Large range of extensions | 5-axis motion
-
Flexibility to get you the solution YOU need
High speed contact scanning | Tool changers | Surface finish
-
Low cost of ownership
Huge service network | Good value accessories | Low maintenance
