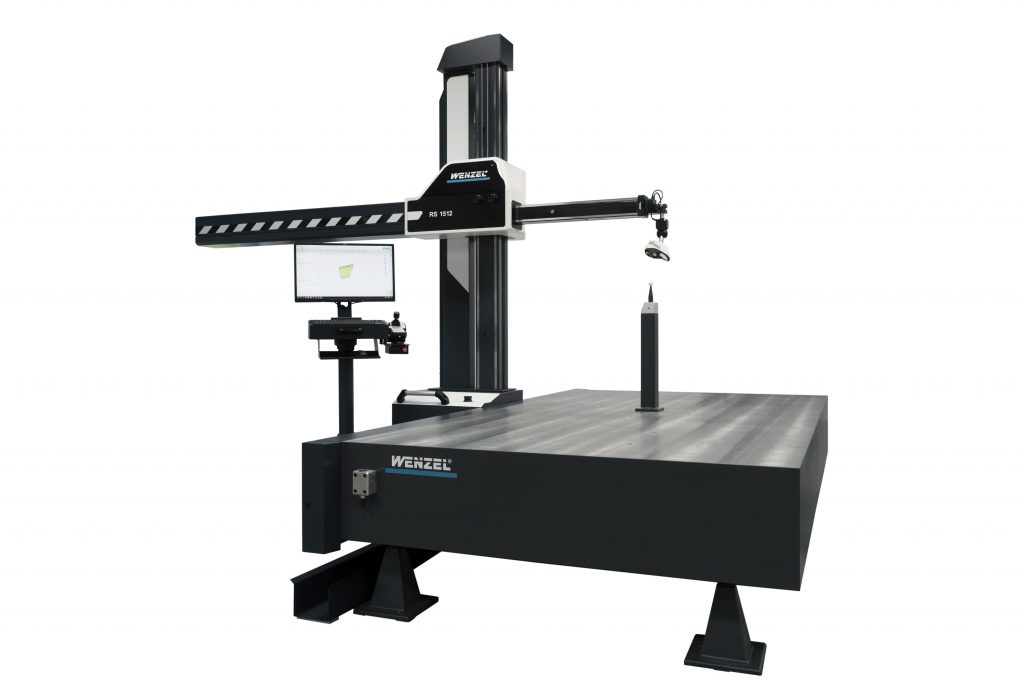

The RS-KMGs machine concept is based on a sturdy base plate as a measuring table with a laterally mounted guide system.

The horizontal alarm meter can be integrated into an existing room concept in a highly flexible way without a specific foundation and can be moved to a new location if necessary.

Features



High flexibility

Easy and flexible integration into existing room and building concepts | Adaptive to room, building and process changes



High durability

Machine design with wear-resistant and optimized components | Investment protection through upgradability and compatibility



High ease of maintenance

Original manufacturer service | Optimum accessibility | Low downtime



The choice is yours

Base plate available in cast iron or granite | Optionally with active vibration damping | Different operating modes



Diverse areas of application

Also suitable for small parts thanks to ergonomic working height | Measurements during production



Variants & sizes



Product information

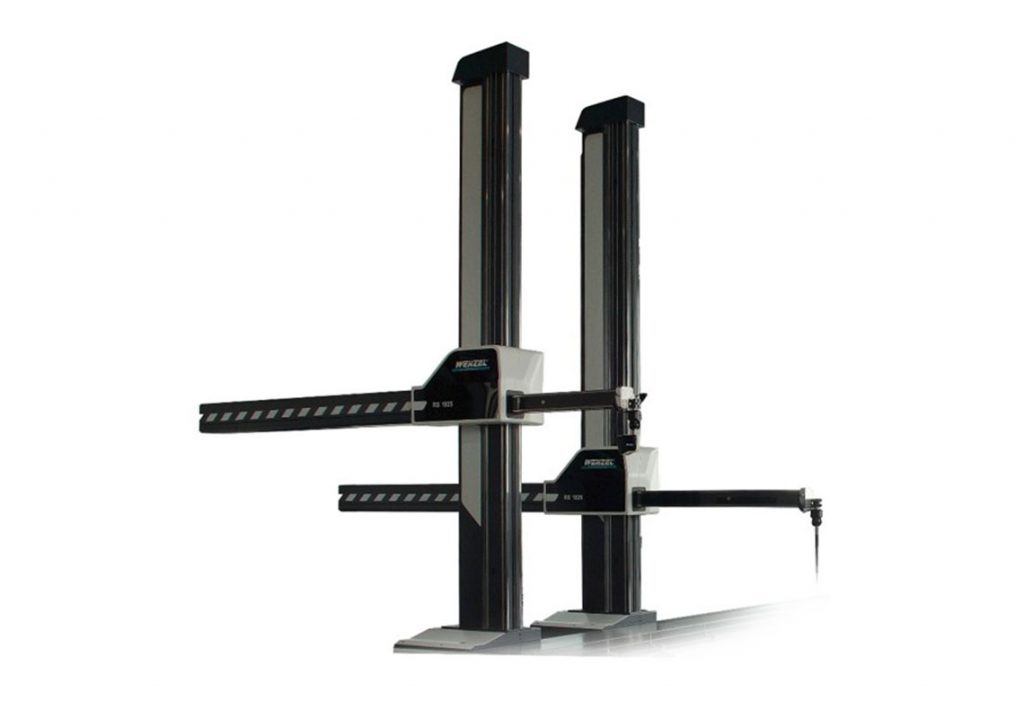

The RS measuring machines are available as manual or CNC devices and combined with decoupleable drives, as a single, double or multi-column system, with tactile and optical sensors and also with vibration damping. The 3D coordinate measuring machine allows individual parts, assemblies, end products, such as car bodies and other large-volume workpieces to be measured close to production. The CMG is available in two accuracy classes — standard and premium.



Areas of application

The main areas of application of RS-KMGs are in the automotive industry for measuring, digitizing and marking individual parts, assemblies or complete car bodies. Typical components include bumpers, seats, instrument panels, welded structures or devices.
