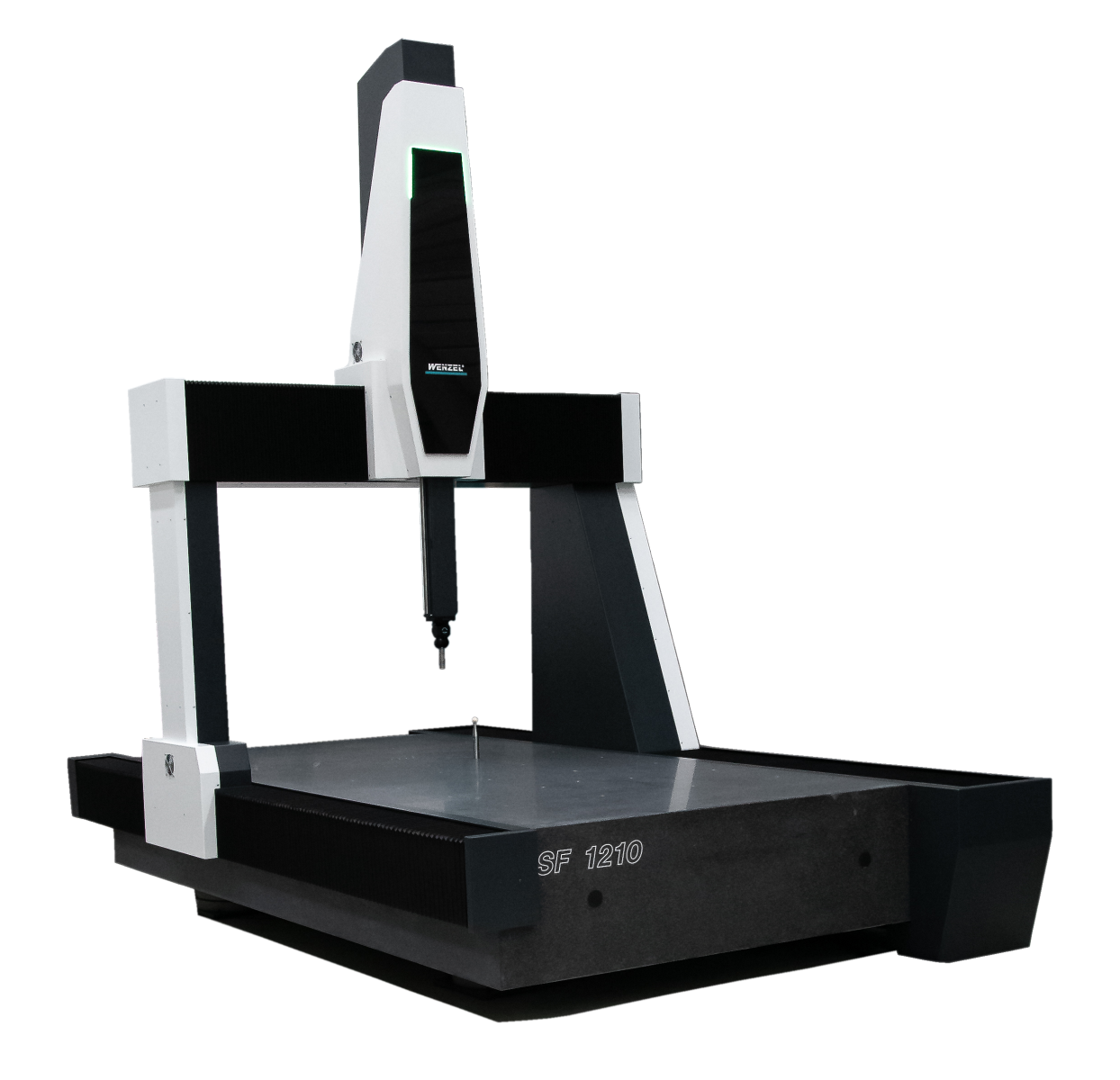

The new SF 1210 coordinate measuring machine is WENZEL';;;s answer to the trend of moving measurement technology closer to production. The SF 1210 offers a large measurement volume of 1200 x 1500 x 1000 mm.





Features



Excellent value for money

Large measurement volume with a small footprint | Low operating costs



Flexible and universal use

Multi-sensor capable (optical and tactile) | 5-axis measurement technology | Available with the appropriate probe exchange units



Suitable for workshop and production use

Temperature compensation | active damping as an option | robust linear guides | wide temperature range



Integration into the line and into automation processes

WENZELAutomation interface (WAI) | Can be assembled from four sides | WM I SYS Analyzer



Modern machine design

Ergonomic and user-friendly | Bionic structures and massless weight compensation | Barrier-free accessibility from 4 sides



Product information

The SF 1210 offers a large measurement volume of 1200 x 1500 x 1000 mm. This makes it ideal for a large part of the machining and forming industry. The extended temperature range makes it the ideal system solution for manufacturers of e.g. cast parts, chassis parts, subframes, motors, etc. The machine concept offers a very good price/performance ratio with a small space requirement.



The double drive in the Y-axis ensures maximum accelerations and speeds and therefore high productivity, e.g. in conjunction with automation. The SF1210 is compatible with WENZEL';;;;s entire range of sensors. This flexibility increases efficiency in your measurement and testing process.



Areas of application

The SF 1210 is a 3D coordinate measuring machine for measuring medium to large production parts on the shop floor area. The intelligent and compact design is suitable for a wide range of applications in the production environment, particularly in the machining and forming industry.
