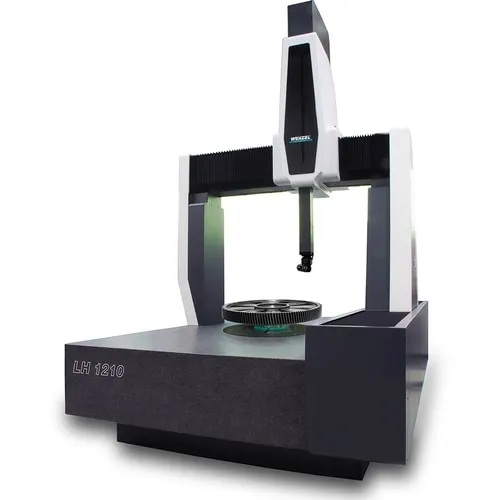

All LH series measuring machines can also be configured with an integrated turntable. This enables both the precise 4-axis measurement of rotationally symmetrical components and the reliable measurement of the entire range of prismatic components.





Features



High flexibility

Measurement of rotationally symmetrical and prismatic components with just one system | Numerous sizes and configurations



High reliability

High-quality components | Years of development experience | Renishaw Sensor Systems



Low operating costs

Low air consumption | Reliable and inexpensive spare parts



High mechanical precision

Granite as a base | Handmade | Precise air bearing in the linear axes



Impressive speed

4-axes for ultimate speed and precision | Fully automatic stylus change systems



Product information

The base plate and linear axes are made of temperature-stable materials. This ensures excellent temperature behavior of the entire measurement system. To guarantee maximum precision, air bearings are used in all axes. Depending on the component size, component weight and measurement requirements, the optimal measurement system can be configured. Various mounting heads and probe systems allow optimal adjustment to your measurement tasks.



Areas of application

The LH series with turntable measures both rotationally symmetrical precision components and prismatic components quickly and reliably. The numerous models and equipment options allow optimal adjustment to your measurement requirements.
